Producer: Stronger
Code: 146
SPECIFICATIONS:
The maximum weight of the anchor | 10 kg |
Boat length up to | 4,6 m |
Anchor rope | ∅ 4 mm, length 30 m |
Roller | there |
Control button | there |
Button control Function | ascent/descent |
Stock for safe transportation of anchors | there |
Connect the Cable to the battery | there |
Free reset anchors | yes |
The rate of rise of armature | 30 m/min. |
In a Number of packaging | 1 piece |
Weight | 8 kg |
Package dimensions (LxWxH) | 377×307×177 mm |
Winch dimensions (LxWxH) | 280,5х280,5х151 mm |
Dimensions of guide rollers (LxWxH) | Mm 260х82х129 |
Model number | W — 30 |
Guarantee | 1 year |

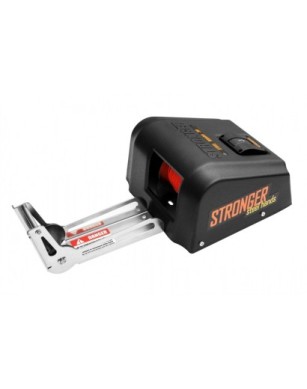

The anchor winch SH 30 is designed for installation on boats and boats up to 4.6 meters long. An anchor rope 30 meters in length with a thickness of 4 mm and a winch wound on the spool is supplied with the winch. The breaking load of the anchor rope is 360 kg. The winch cover is made of a durable ABC plastic which is not afraid of the effects of ultraviolet rays, as well as sudden temperature changes. The complete set includes a roulette, fasteners, power cable and warranty card for a period of 1 year. Details of the winch mechanism are made of durable steel with galvanic coating. The winch has a quiet working mechanism. In this model, in contrast to the SH 35 PRO model, there is no “smooth entry function of the anchor in the water”. When the anchor reset button is pressed, the anchor leaves the roll and in free fall rushes into the water. Thanks to the “free anchor reset” function, within a few seconds it reaches the bottom. The entire mechanism of the anchor winch is implemented mechanically, which significantly increases the reliability of the mechanism and, in general, the winch itself. In the anchor winch SH 30, a motor with a power of 85 watts is installed. For correct operation of the anchor winch, the recommended anchor weight range is (16-22 LB) (7-10 kg). To date, the STRONGER anchor winches are the quietest rope anchor winches that have the function of free anchoring.
